Portage and Main

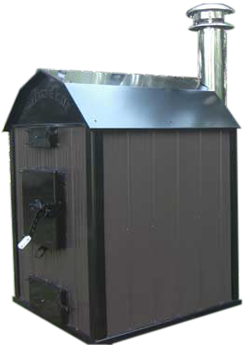

Outdoor Water Furnace
with Stocker
Outdoor Water Furnace
with Stocker
- Portage & Main Coal or Pellet Stokers come with a standard eight foot auger (option is available for up to 12 foot length).
- Portage & Main Sawdust Unit is a custom-built live deck to prevent sawdust from bridging. the main power supply to the boiler requires only 120 volts - 10 amps. power is then inverted to 220 volts 3-phase (variable speed) which drives the 1/4 HP Leeson motor that runs the stoker for coal burners. The sawdust stoker has a 1 HP motor.
- The Portage & Main Stoker is also equipped with automatic ash removal designed to be trouble-free for years to come. The stoker head inside air director provides an even air flow under the fire allowing for very efficient, clean-burning combustion.
Portage & Main Stoker Features Include:
- low water shut down safety
- adjustable drive overloads for fan and stoker
- electric overload burn back prevention
- adjustable air flow
- variable frequency drive (VFD) speed control allows for burning of any grade fuel
- stokers can be programmed to come on automatically - programming in 1 to 30 minute intervals which maintains a minimum fire and prevents burn back
- heavy duty 1/4 HP AC 220 volt 3-phase Leeson drive motor (inverter rated).
- AC is better than DC voltage
- heavy duty Bonfiglioli gear box for long life
- electronic aquastat control for temperature accuracy
- manual fan control (overload protected, ball bearing motor capacitor run, long life)
- virtually smokeless - very clean burn
- self-cleaning rotating stoker head - Warnock Hersey certified
- tested to CSA standards with UL approval
- very easy to clean heat exchanger - user friendly
- four pass heat exchanger - high efficiency
- 10 year limited water jacket and burn-pot warranty
- 3 year warranty on stoker components
- 1 year warranty on electrical components
The PORTAGE and MAIN is eligible for
Canadian Eco Energy Retrofit Program Grants starting at $300.00. and U.S.
ENERGY GRANTS.
HEAT WITH GRAIN, SAVE MONEY, CLEAN UP THE ENVIROMENT and STAY WARM
Canadian Eco Energy Retrofit Program Grants starting at $300.00. and U.S.
ENERGY GRANTS.
HEAT WITH GRAIN, SAVE MONEY, CLEAN UP THE ENVIROMENT and STAY WARM
